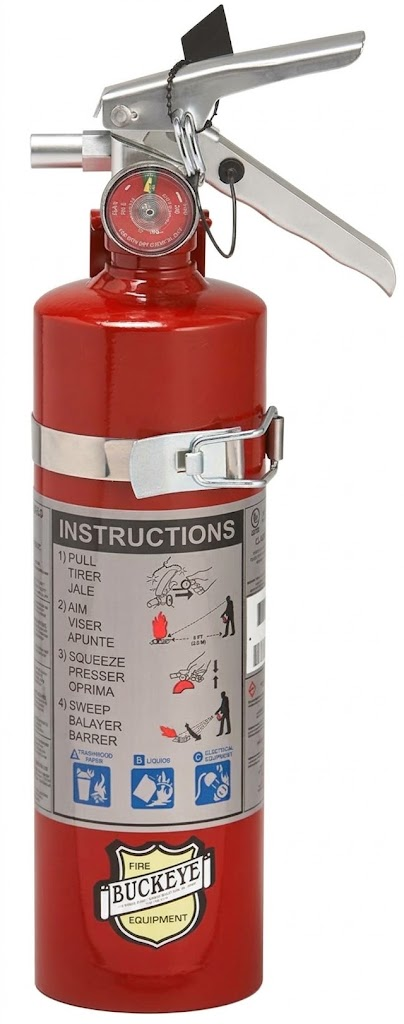

ABC Dry Chemical is a multipurpose extinguishing agent that is suitable for use on Class A, Class B and Class C fires.
TYPICAL USES: For public areas such as offices, classrooms, churches, parking garages, and hotel/motel assembly halls and guest areas. For businesses such as retail stores, light manufacturing facilities, research facilities, auto dealerships, vehicle/aircraft/marine service centers, and manufacturing processes such as painting, dipping, and coating.
|
Model |
2.5 lbs
ABC
V/B |
5 lbs
ABC |
5 lbs
ABC V/B |
10 lbs
TALL ABC |
10 lbs
10S ABC |
20 lbs
20S ABC |
30 lbs
30S ABC |
|
Alum. Valve |
13315 |
10914 |
25614 |
11340 |
11310 |
12120 |
N/A |
|
Brass Valve |
N/A |
10915 |
25615 |
11341 |
N/A |
12121 |
12905 |
|
Agent
Capacity |
2.5 lb.
(1.13 kg) |
5 lb.
(2.27 kg) |
10 lb.
(4.54 kg) |
20 lb.
(9.07 kg) |
30 lb.
(13.6 kg) |
|
UL Rating |
1A-10B:C |
3A-40B:C |
4A-80B:C |
4A-60B:C |
20A-120B:C |
20A-160B:C |
|
Discharge Time |
9 sec |
14 sec |
22 sec |
18 sec |
26 sec |
32 sec |
|
Range (ft/m) |
9-15 / 2.7-4.6 |
12-18 / 3.7-5.5 |
15-21 / 4.6-6.4 |
25-30 / 7.6-9.1 |
|
Operating
Pressure |
100 psi
(689 kPa) |
195 psi
(1344 kPa) |
|
Bracket |
Vehicle |
Wall |
Vehicle |
Wall |
|
USCG
Approval |
Type B:C
Size I |
Type A Size II
Type B:C Size I |
Type A Size II
Type B:C Size II |
Type A Size II
Type B:C Size III |
Type A Size II
Type B:C Size IV |
|
Ship Wt. |
5.5 lbs.
(2.5 kg) |
10 lbs.
(4.5 kg) |
10.25 lbs
(4.7 kg) |
18.25 lbs.
(8.3 kg) |
18.75 lbs.
(8.6 kg) |
33.5 lbs.
(15.2 kg) |
52.25 lbs.
(23.7 kg) |
|
Height |
14.75 in
(37.5 cm) |
16.375 in
(41.6 cm) |
21 in
(53.3 cm) |
16.75 in
(42.5 cm) |
21.25 in
(53.8 cm) |
27.375 in
(69.4 cm) |
|
Width |
4.875 in
(12.4 cm) |
7.25 in
(18.4 cm) |
7.75 in
(19.7 cm) |
8.25 in
(21 cm) |
8.75 in
(22.2 cm) |
|
Diameter |
3.375 in
(8.6 cm) |
4.25 in
(10.8 cm) |
5.125 in
(13 cm) |
6 in
(15.2 cm) |
7.5 in
(19.1 cm) |
