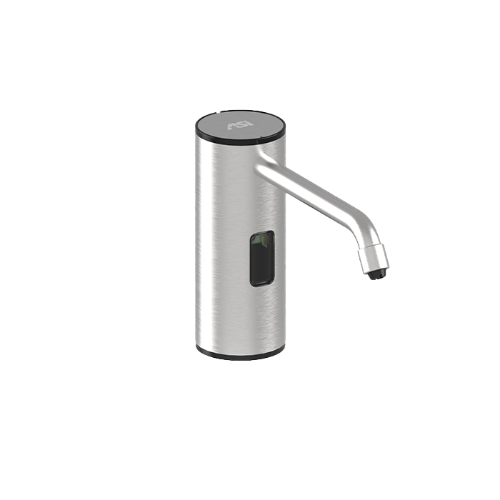

American Specialties, Inc. (ASI) 10-0388-1A Top-Fill Multi-Feed Dispenser Head.
Constructed of type 304 stainless steel with a satin finish. Battery Operated - uses 6 D cell batteries. Hands-Free.
Also available in A/C Operated Version
10-0388-1AC
Dispenser Heads work with the Top-Fill Muti-Feed Kit and Container
10-0387 (sold separately). Fill up to 12* automatic liquid or foam soap
dispensers with one pour using the counter fill port connected to a large
capacity, leak-proof tank−a perfect addition to any high traffic washroom.
Top-Fill for easy maintenance.
*Maximum 6 dispensers on each side of soap tank, see Installation Guide
and Owner’s Manuals for proper installation.

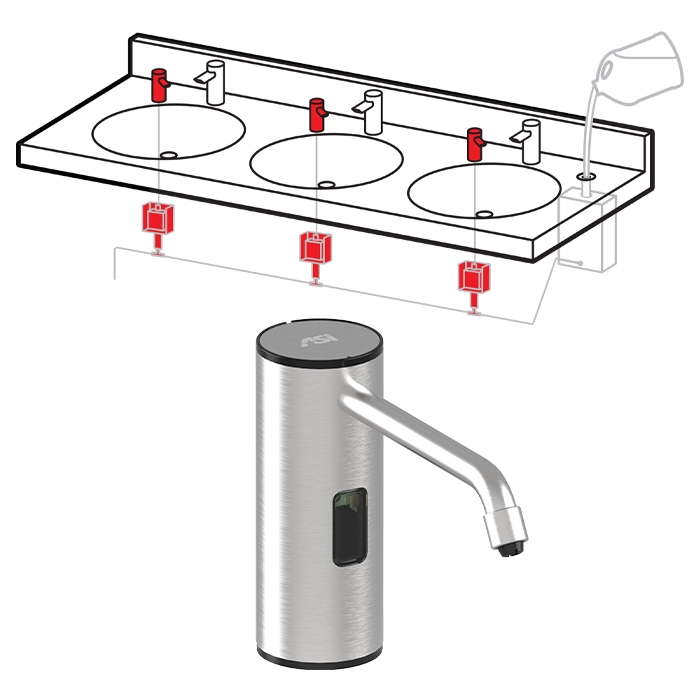

How it works:
The control module/pump attached to this
dispenser head (mounted below vanity) is fed soap through a supply tube
connected to the Multi-Feed Tank (10-0387
not included). A multi-feed dispensing system is created when additional
dispensers, connected by soap tubing, are added.
Soap Requirements:
Proper usage of this dispenser
requires, that only soap within the following range for viscosity and pH may be
used.
Viscosity Range (mPa·s or cP): 5 – 3k
pH Range: 5.5 ~ 8.5
Top-Fill Multi-Feed Kit and 6 Liter Container Sold Separately |
|
Top Fill Multi-Feed Kit with 6 Liter Container |
American Specialties, Inc. Model: 10-0388-1A
