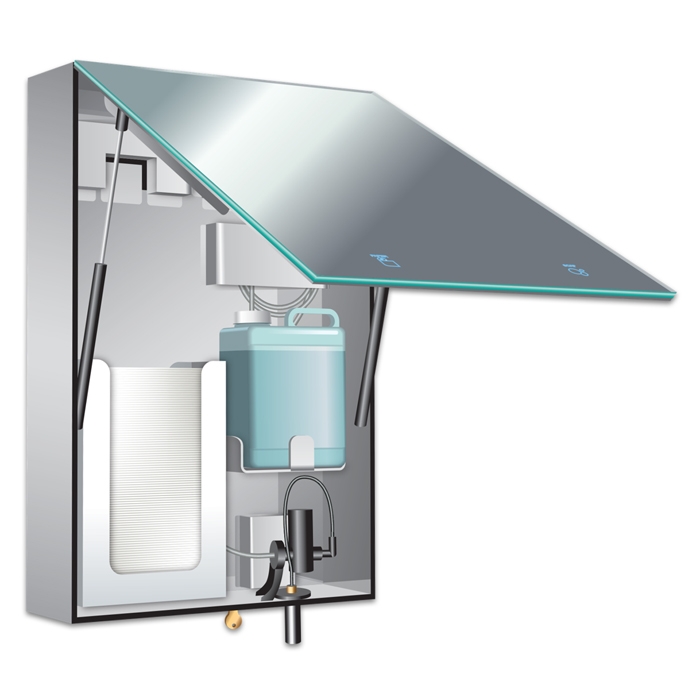

Velare™ Behind the Mirror (BTM) is designed for elegance and safety in mind,
concealing consumables in a cabinet made from type 304 stainless steel. The
mirrored door cabinet features backlit icons indicating the functions
on the bottom panel of each module. The mirror is made from 1/4" (6 mm)
thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and
eased corners with SS sheet intermediate stiffener and SS back plate with
integral welded support mounts, hinge and lock keeper.
The mirrored door is attached to the cabinet using a full width 3/16"
diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock
and key. Support for mirror door is provided by twin damped gas springs to
assist opening from 15° to 90° with soft-stop cushion at full open and when
lowering to full closed position for locking.
This wall mounted stainless steel cabinet conceals a hands-free automatic
liquid soap dispenser with a 1.5 gal (6 L) capacity, and a paper towel
dispenser with a 500 towel capacity. Mirror backlights operate on 100 – 240 VAC provided
to quad (double-duplex) outlet (by others) concealed behind the cabinet into
which a standard appliance power cord and AC adapters are plugged into at
installation.
Soap Requirements: Proper usage of this dispenser requires, that only soap
within the following range for viscosity and pH may be used. Viscosity Range
(mPa·s or cP): 100 – 3000 pH Range: 5.5 ~ 8.5.
Matching filler modules (FM) are available as spacers between cabinets.
Dimensions:
23-5/8" x 35-7/16" x 7-9/16" (600 x 900 x 192)
American Specialties, Inc. (ASI) Model: 10-0661-T
