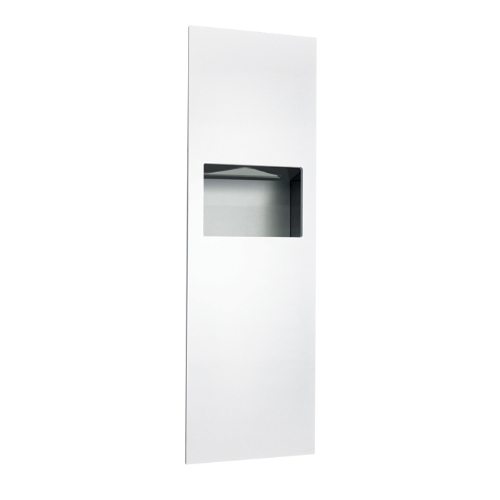

ASI’s Piatto™ 6462-00 is a sophisticated combination paper towel and waste
receptacle cabinet is designed to be completely recessed into the plane of the
washroom wall. The high-end door hinges, used to achieve this precise
co-planar fit, are easily adjusted in the field. Phenolic door in white, is
attached to the cabinet using field-adjustable, furniture quality hinges and is
secured shut by an internal spring-loaded latch. All hardware is concealed.
This versatile paper towel dispenser dispenses 600 C-fold, 800 multi-fold, or
1,100 standard single-fold towels (with provided adapter). 9 gal.
stainless steel waste receptacle. Rolled edged finger hole allows for easy
servicing and removal. An adjustable towel adapter ensures that towels feed
properly until depleted.
Cabinet Dimensions |
Finished Wall Opening
W x H x D |
Unit Size
W x H x D |
| 17-5/16" x
54-1/16" x 6-11/16" min |
17-1/4" x 54" x
6-9/16" |
American Specialties, Inc. (ASI) Model: 10-6462-00
