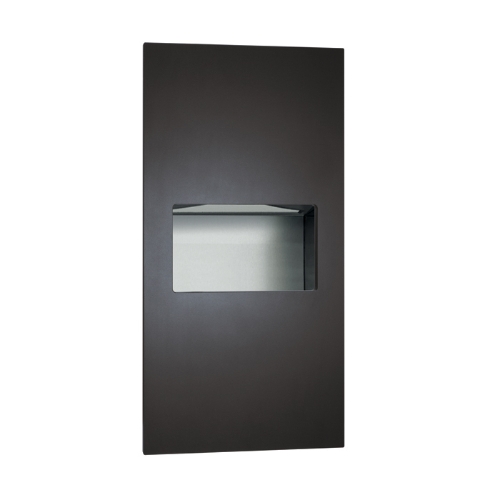

ASI’s Piatto™ 64623-41 is a sophisticated combination paper towel and waste
receptacle cabinet is designed to be completely recessed into the plane of the
washroom wall. The high-end door hinges, used to achieve this precise
co-planar fit, are easily adjusted in the field. Phenolic door in black, is
attached to the cabinet using field-adjustable, furniture quality hinges and is
secured shut by an internal spring-loaded latch. All hardware is concealed.
Paper towel dispenser dispenses 350 C-fold or 475 multi-fold paper towels. 2.2
gal. stainless steel waste receptacle.
Cabinet Dimensions |
Finished Wall Opening
W x H x D |
Unit Size
W x H x D |
| 14-5/16" x
28-1/16" x 4-11/16" min |
14-1/4" x 28" x
4-9/16" |
American Specialties, Inc. (ASI) Model: 10-64623-41
