  • Automatic Roll Paper Towel Dispenser and Waste Receptacle
  • Battery Powered (4 D Size Batteries not Supplied)
  • Sophisticated Seamless Design
  • Dispenses One 8" Diameter 8" Wide Standard Roll Paper Towel and One 4" Stub Roll
  • 9.9 gal. (37.3 L) Stainless Steel Waste Receptacle
  • Automatically Changes Over to Main Roll when Finished with Stub Roll when Feed Tabs are Properly Engaged

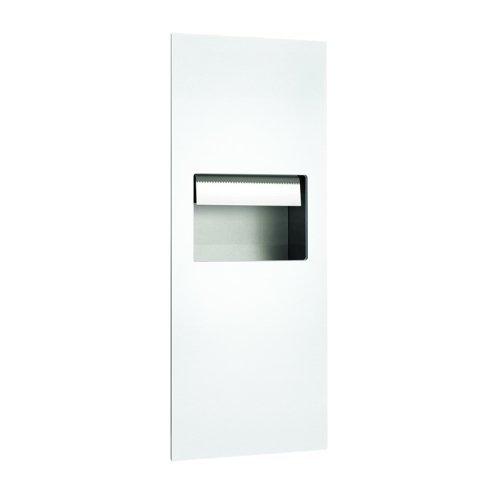

ASI 64696A-00 Piatto™ Completely Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle - Battery Operated – White Phenolic Door
Description

ASI’s Piatto™ 64696A-00 is a sophisticated automatic paper towel dispenser and waste receptacle cabinet. Cabinet is completely recessed into the plane of the washroom wall, highlighting the seamless design. The white phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal. Automatic no-touch unit holds and dispenses one 8" diameter x 8" wide  standard towel roll up to 800 ft. long and one 8" wide stub roll up to 4" diameter and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Powered by (4) D-size batteries (not supplied) and operates automatically to activate towel dispensing when hands are placed in sensor zone.  Owner selects length of towel using delay and paper saver switches. 9.9 Gallon Capacity Waste Receptacle.

Cabinet Dimensions
Finished Wall Opening
W x H x D
Unit Size
W x H x D
16-1/8" x 41-5/16" x 10"  min   16-1/16" x 41-1/4" x 9-11/16"



 Technical Data   Installation Instructions   Product Warranty
ASI Catalog Buy American Act Catalog Buy American Act
  Piatto™ Sales Sheet

American Specialties, Inc. (ASI) Model: 10-64696A-00
