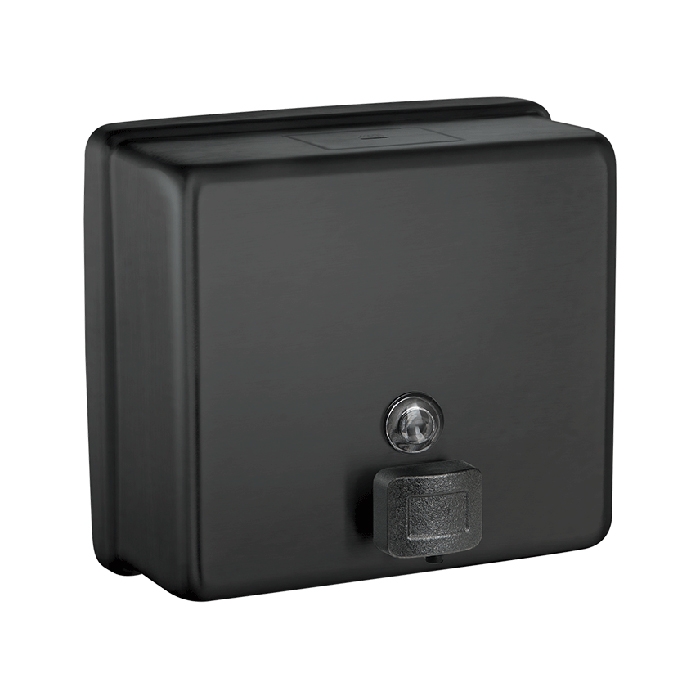

ASI 9343-41 Surface Mounted Soap Dispenser is made from 304 Stainless Steel Alloy
with Matte Black Powder Coated Finish. Soap dispenser has a capacity of 48 fl.
oz. (1.4 L). Includes a tamper-resistant refill window with concealed fastening
and vandal-resistant hinged filler-top. Valve operation complies with ADA
guidelines requiring no more that 5lbs. of pressure.
Soap Requirements: Proper usage of this dispenser requires,
that only soap within the following range for viscosity and pH may be used.
Viscosity Range (mPa·s or cP): 100 – 2.5k pH Range: 5.5 ~ 8.0
Dimensions: 7-1/4" x 6-1/2" x 3-11/16"
Spout
Projection: 15/16"
American Specialties, Inc. 10-9343-41
