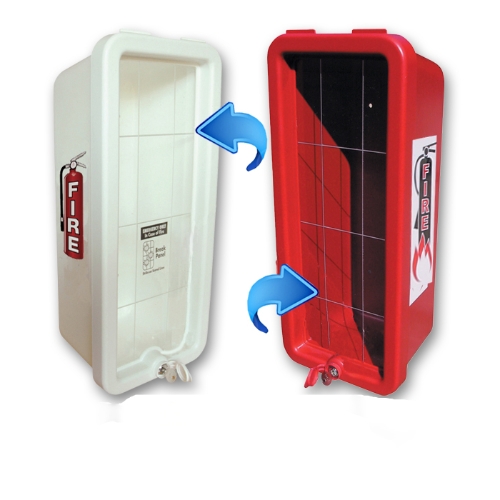

This is the replacement front for the CATO fire extinguisher cabinet in white (12001) or
red (12051) that holds up to 20 lb. extinguishers.
SIZES
- 10575 (18 3/4" x 7 5/8") is for the 10501\10551 for 5 or 2½ lbs. extinguisher
- 11075 (22 5/8 " x 8 5/8") is for the 11001\11051 for 10 lbs. extinguisher
- 12075 (27 3/4" x 10 5/8") is for the 12001\12051 for 20 lbs. extinguisher
PLASTIC FIRE EXTINGUISHER CABINET DIMENSIONS
|
Model # |
Interior Tub |
Overall Outside Trim |
With Cover Outside |
|
|
W |
H |
D |
W |
H |
D |
W |
H |
D |
|
Plastic Fire Extinguisher Cabinets |
|
10501 (P) |
6" |
16 3/4" |
5 3/8" |
6" |
19" |
6 3/8" |
8 1/4" |
19 1/4" |
6 3/4" |
|
11001 (P) |
6 3/4" |
20 1/2" |
6" |
9" |
23" |
7" |
9 1/4" |
23 1/4" |
7 1/4" |
|
12001 (P) |
9" |
26" |
8" |
11" |
26" |
9" |
11 1/2" |
28 1/2" |
9 1/2" |
|
|
|
|
|
|
|
|
|
|
|
|
10551 (P) |
6" |
16 3/4" |
5 3/8" |
6" |
19" |
6 3/8" |
8 1/4" |
19 1/4" |
6 3/4" |
|
11051 (P) |
6 3/4" |
20 1/2" |
6" |
9" |
23" |
7" |
9 1/4" |
23 1/4" |
7 1/4" |
|
12051 (P) |
9" |
26" |
8" |
11" |
26" |
9" |
11 1/2" |
28 1/2" |
9 1/2" |
Cato, Inc. Catalog # 12075
