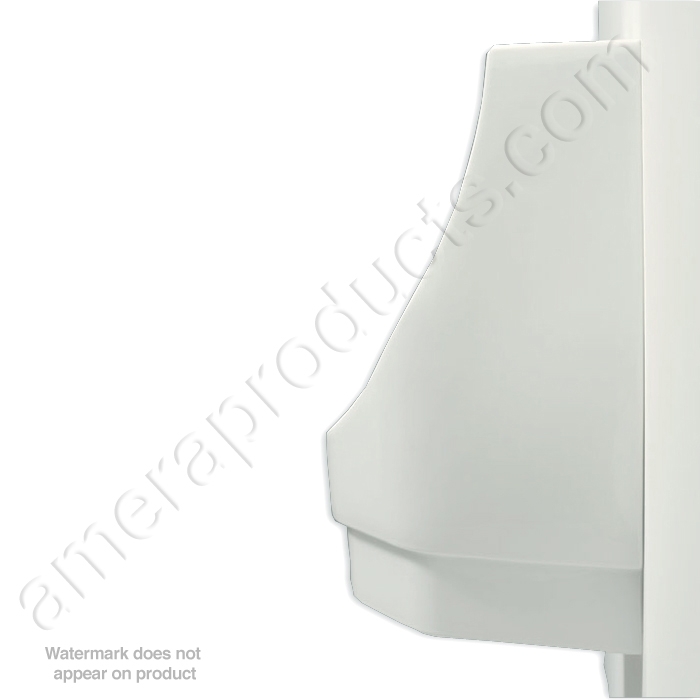

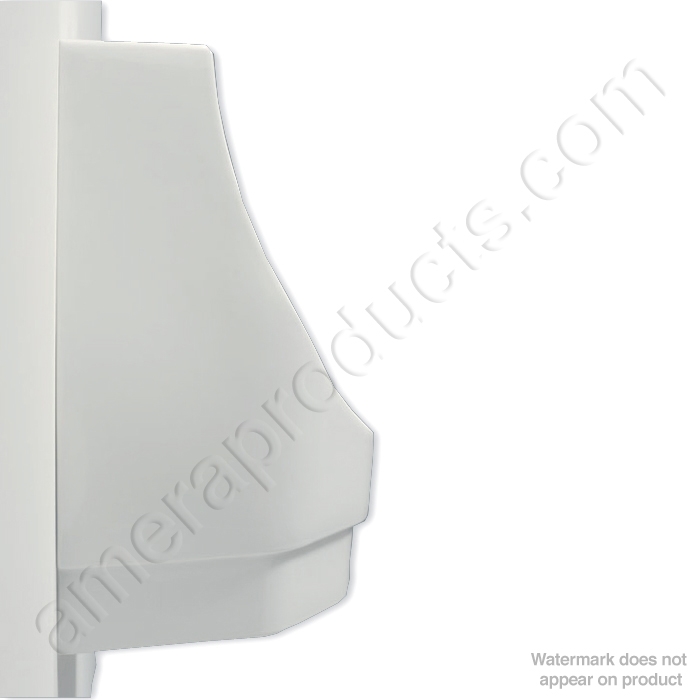

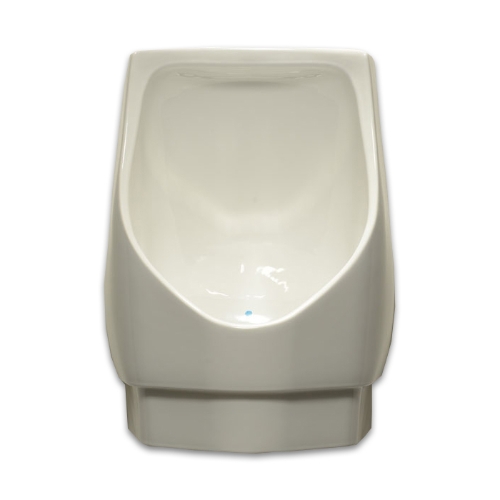

The Falcon F1000 Waterless Urinal is ideal for most retrofits. This urinal is constructed of vitreous china and is surface mounted wall hung wall outlet unit. This urinal meets ANSI/ASMEA112.19.19-2006 for vitreous china non-water urinals and is IAPMO and CSA certified. Meets the ADA guidelines, ANSI A117.1 for accessible and usable buildings and facilities and International Plumbing Code, Uniform Plumbing Code and National Standard Plumbing Code Requirements.
All Waterfree Urinals should not be installed on copper DMV as copper is prone to corrosion.
F1000 Includes:
Vitreous China Fixture
Installed housing (H-1, Mod.3)
Cartridge kit
One-piece wall bracket with anchors
Uni-coupler
Drain line test cap
Installation instruction sheet
Professional cartridge change key
Wall plaque - spreads the word about water conservation while telling customers this facility is environmentally conscious
F1000 |
| Material | Overall Dimensions
W x H x D |
| Vitreous China | 19-3/8" x 25-7/8 " x 14-5/8 " |
HOW IT WORKS
Falcon Waterfree Cartridges use a patented bayonet locking feature with O-ring to provide an airtight fit with the housing unit. This cartridge combined with the dual barrier liquid trap with sealant prevents the back migration of sewer gases and eliminating nasty odors from a urinal. Reduced potential for drain line clogging with a built in sediment filter.
INSTALLATION AND MAINTENANCE INSTRUCTIONS
