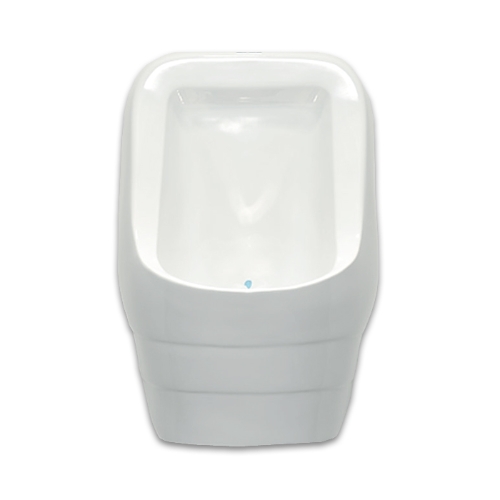

The Falcon F4000 / Clematis Waterless Urinal is a Smaller Design for installations with space limitations. It is constructed of vitreous china and is a wall hung, wall outlet waterless urinal. This waterless urinal requires NO flush valve or water supply and plumbs to your standard drain connection. This urinal is designed for either new construction or retrofit construction. Meets ANSI/ASME A112.19.19-2006 for vitreous china non-water urinals. Also meets ADA guidelines and ANSI A117.1.
All Waterfree Urinals should not be installed on copper DMV as copper is prone to corrosion.
F4000 Includes:
Vitreous China Fixture
Installed housing (H-1, Mod.3)
Cartridge kit
One-piece wall bracket with anchors
Uni-coupler
Drain line test cap
Installation instruction sheet
Professional cartridge change key
Wall plaque - spreads the word about water conservation while telling customers this facility is environmentally conscious
F4000 |
| Material | Overall Dimensions
W x H x D |
| Vitreous China |
15.375" x 22.625 " x 14" |
HOW IT WORKS
Odor Free: Patented Falcon Waterfree Cartridges use a bayonet locking feature with O-ring these provide an airtight fit with the housing unit. This cartridge combined with the dual barrier liquid trap with sealant prevents the back migration of sewer gases and eliminating nasty odors from a urinal. Built in Sediment Filter Reduces potential for drain line clogging.
INSTALLATION AND MAINTENANCE INSTRUCTIONS
