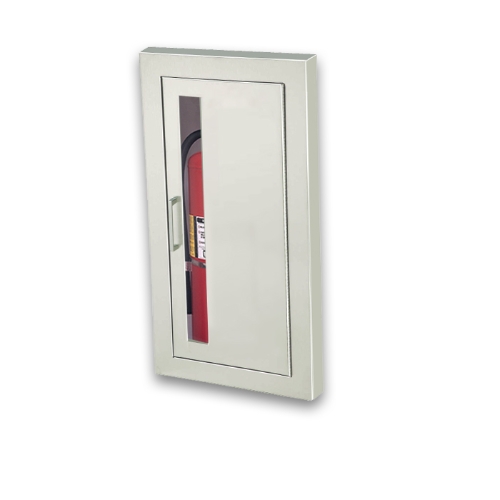

JL Cosmopolitan Stainless Steel 1836V10 Semi-Recessed 5 lbs. Fire Extinguisher Cabinet

Item #: JLI-1836V10

~~Was: $285.15~~

Price: $285.15

Optional:

Vertical Red Decal / add $4.00

Vertical White Decal / add $4.00

Vertical Black Decal / add $4.00

Optional:

Standard Handle ------------------------

ADAC Handle PRH --- / add $14.88

Die Cast "Fire" Handle / add $12.00

Update price

Quantity:

Estimate Shipping

Lead Time: 35 Business Days

Holds 2½ lb or 5 lb Fire Extinguishers
Stainless Steel
1½ Square Trim Style
Vertical Duo Glass Door - Clear Acrylic Glazing
"Fire Extinguisher" decal (optional above)
Die Cast "Fire" Handle (optional above)
One Year Warranty
ADA Compliant
Made in America

JL Cosmopolitan Stainless Steel 1836V10 Semi-Recessed 5 lbs. Fire Extinguisher CabinetCabinet

Description

The Cosmopolitan Series is a Modern, Clean Look Stainless Steel Cabinet. Door and Trim are #4 stainless steel. 1 1/2 Square trim style cabinet doors have a 5/8" door stop and are attached by a continuous hinge with a zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. The door is vertical duo style and is made of clear acrylic glass. Cabinet and handle protrude 1-1/8 " from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10½" x 24" x 5½"	13-7/8" x 27-3/8 " x 1½"	11½" x 25" x 4 1/8"	2½, 5, or 6 lbs.

Available Options:

Full Glass or Solid Door
Safety Lock
Flush Handle
Additional Stainless Steel Finishes
Additional Tub Colors - Black or Red
Alarm Systems
Etched or Engraved Lettering in Glass or Metal

Stainless Steel Finishes	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes
