  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Solid Door
  • Flush Pull Handle
  • "Fire Extinguisher" decal (optional above)
  • ADA Compliant
  • One Year Warranty
  • Made in America

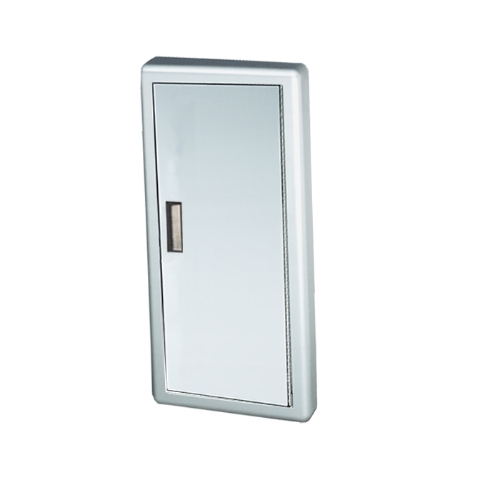

JL Academy Aluminum 1022S21A Semi-Recessed 4" Rolled Edge with Flush Handle 10 lbs. Fire Extinguisher Cabinet

Description

The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Semi-Recessed with 4" Rolled Edge and flush handle. Cabinet and handle protrude 4" from the surface. Tub is constructed of cold rolled steel with white powder coated finish. ADA Compliant.



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H x D
Extinguisher Size
10-1/2" x 24 " x 6" 13-7/8" x 27 x 4" 11½" x 25" x 3" 2½, 5, 10 lbs.


Available Options:

  • Vertical Duo or Full Glass
  • Stainless Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Anodized Color Finishes - Dark Bronze
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc.
Model C1022S21A
