  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • Flush Pull Handle
  • ADA Compliant
  • SAF-T-LOK™ - Keyed Cylinder Lock
  • "Fire Extinguisher" decal (optional above)
  • One Year Warranty
  • Made in America

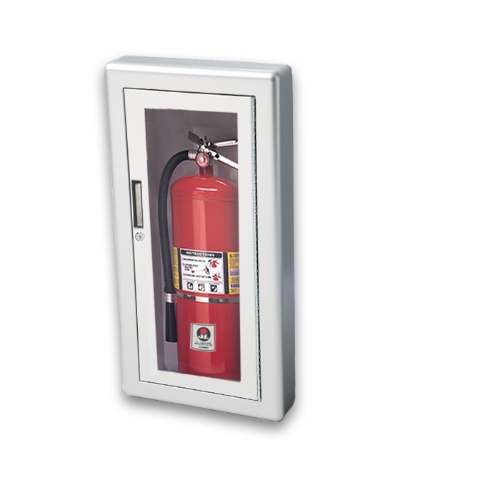

JL Academy Aluminum 1022G10A Semi-Recessed 4" Rolled Edge with Flush Handle 10 lbs. Fire Extinguisher Cabinet with Lock

Description

The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. All models have 1-3/4" trim on face and door. Semi-Recessed with 4" Rolled Edge and flush handle. The door comes with a full panel of clear acrylic glass. Cabinet and handle protrude 4" from the surface. Tub is constructed of cold rolled steel with white powder coated finish. ADA Compliant.



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H x D
Extinguisher Size
10-1/2" x 24 " x 6" 13-7/8" x 27 x 4" 11½" x 25" x 3" 2½, 5, 10 lbs.


Available Options:

  • Vertical Duo or Solid Door
  • Stainless Steel
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Anodized Color Finishes - Dark Bronze
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc.
Model C1022G10A
