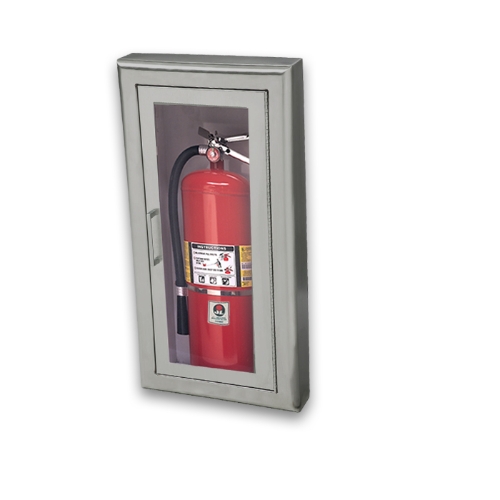

JL Academy Aluminum 8127F10 Semi-Recessed 5 lbs. Fire Extinguisher Cabinet

The Academy Series is a durable, attractive aluminum cabinet that stands up to conditions in commercial buildings. Door and trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Surface mounted has a square edge. The door comes with a full panel of clear acrylic glass. Cabinet and handle protrude 3-3/4" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish.

The 8127F10 comes with clear acrylic glazing standard.  The 8127F17 comes with clear tempered glass glazing (optional above).  The 8127F18 comes with laminated safety glass glazing (optional above).  The 8127F13 comes with clear wire glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
9" x 18 " x 5-1/2"	12-3/8" x 21-3/8 " x 2-1/2"	10" x 19" 3-3/4"	2½, 5, 6 lbs.

Available Options:

• Vertical Duo or Solid Door
• Stainless Steel or Powder Coated Steel
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Anodized Color Finishes
• Etched or Engraved Lettering in Glass or Metal

Color Finishes	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8127F10
C8127F17
C8127F13
C8127F18
C8127F10A
C8127F17A
C8127F13A
C8127F18A
