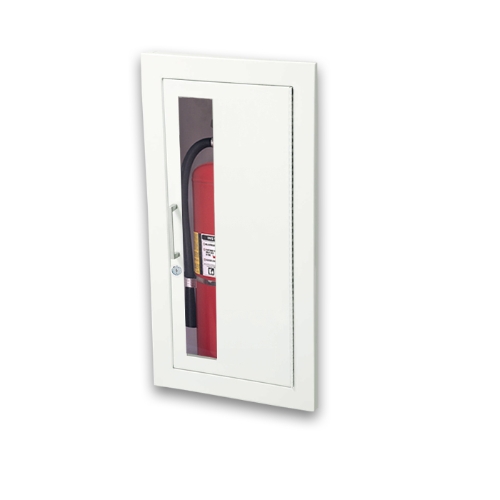

JL Ambassador 8115W10 Recessed 5 lbs. Fire Extinguisher Cabinet with Lock

The ambassador series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings. Door and Trim are cold rolled steel with white powder-coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. All models have 1-3/4" trim on face and door. The door is a vertical duo style of clear acrylic glass. Cabinet and handle protrude 1-1/8" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

The 8115W10 comes with clear acrylic glazing standard.  The 8115W17 comes with clear tempered glass glazing (optional above).  The 8115W18 comes with laminated safety glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Available Options:

• Full Glass or Solid Door
• Stainless Steel
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8115W10
C8115W17
C8115W18
C8115W10A
C8115W17A
C8115W18A
