10 Day Lead-Time (Business Days) for this Product

  • Holds 2½ lb, 5 lb Fire Extinguishers
  • Solid Door
  • SAF-T-LOK™ Keyed Cylinder

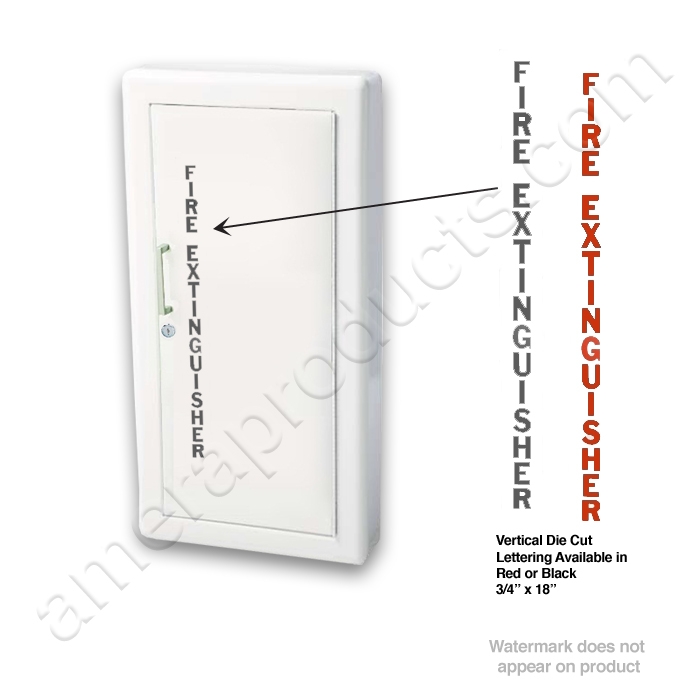

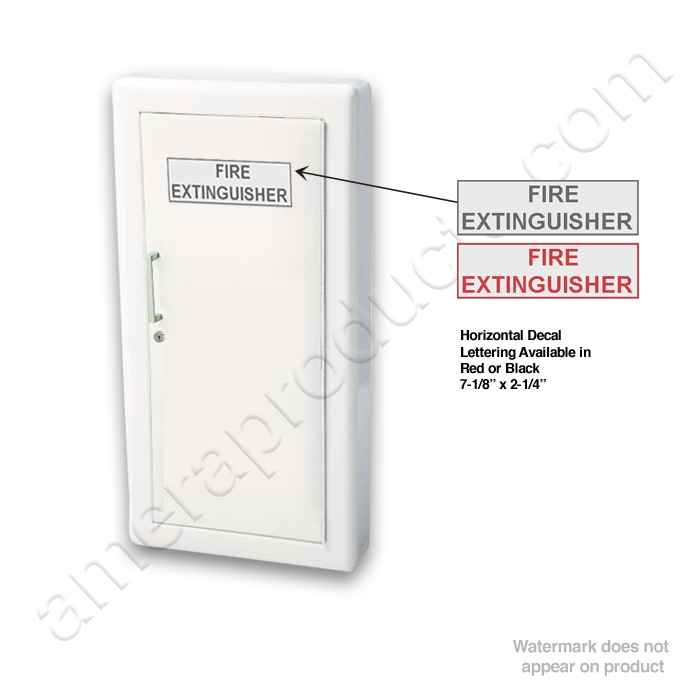

  • "Fire Extinguisher" Decal or Lettering (optional above)

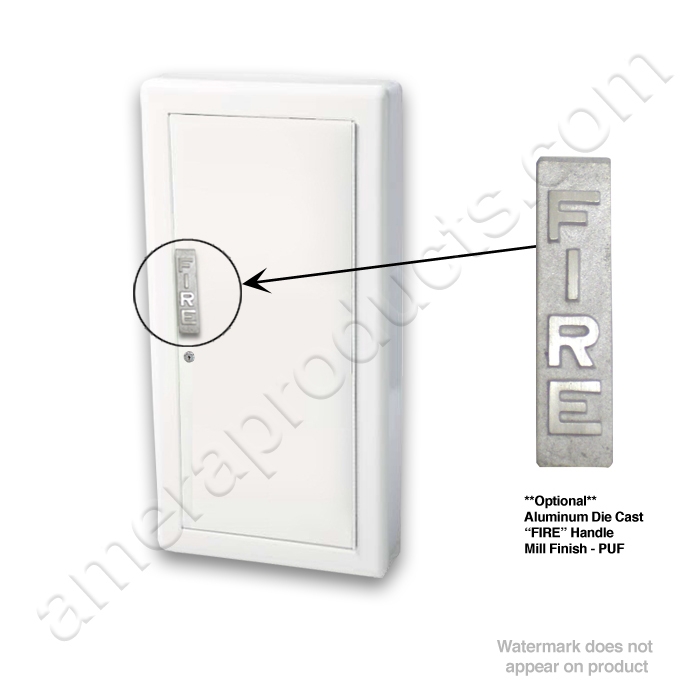

  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America

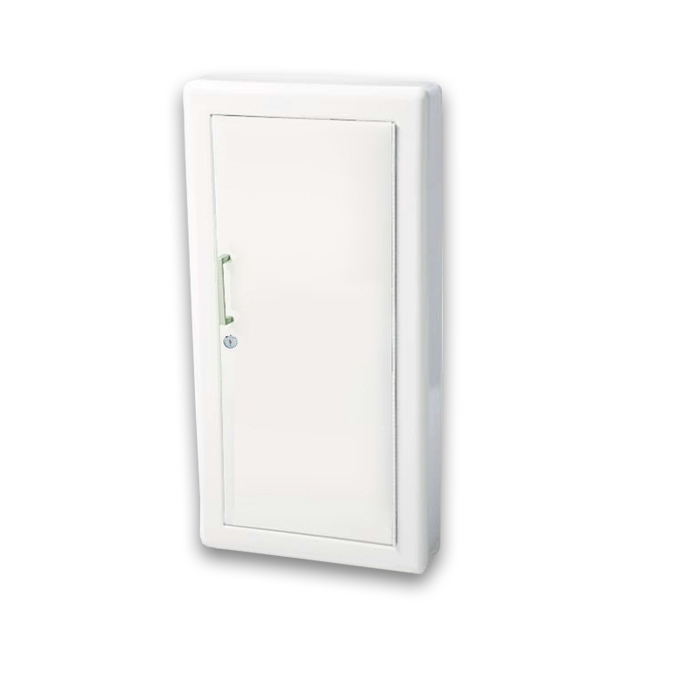

JL Ambassador 8117L22 Semi-Recessed 5 lbs. Fire Extinguisher Cabinet with Lock

Description

The ambassador series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings. Door and Trim are cold rolled steel with white powder-coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. All models have 1-3/4" trim on face and door. The door is a solid door. Semi-Recessed Cabinet and handle protrude 3-3/4" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
9" x 18 " x 5½" 12-7/8" x 21-3/8 " x 3-3/4" 10" x 19" 3-1/8" 2½, 5 lbs.

Available Options:

  • Vertical Duo or Full Glass Door
  • Stainless Steel
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal
