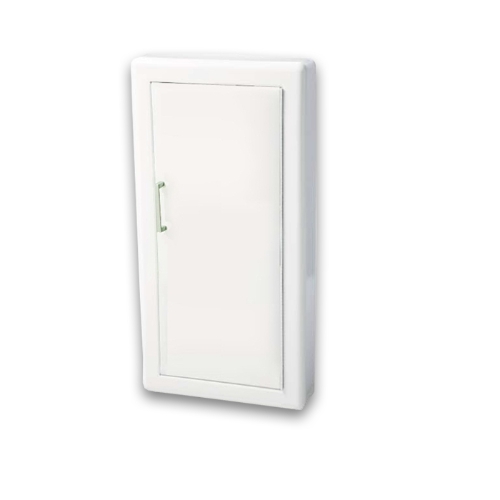

JL Ambassador 8117S21 Semi-Recessed 5 lbs. Fire Extinguisher Cabinet

The ambassador series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings.  Door and Trim are cold rolled steel with white powder-coated finish.  The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch.  All models have 1-3/4" trim on face and door. The door is a solid door.  Semi-Recessed Cabinet and handle protrude 3-3/4" from the surface.  The tub is constructed of cold rolled steel with white powder-coat finish standard.

The standard handle, the chrome pull handle (optional above), and the die cast "FIRE" handle (optional above), protrudes into the room an additional 5/8" from the surface of the 8117S21 cabinet.  The ADAC flush pull handle (optional above) can be added 8117S21A.  All handle options are ADA compliant on this cabinet.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
9" x 18 " x 5½"	12-7/8" x 21-3/8 " x 3-3/4"	10" x 19" 3-1/8"	2½, 5 lbs.

Available Options:

• Vertical Duo or Full Glass Door
• Stainless Steel
• Safety Lock
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8117S21
C8117S21A
