Clear VU Steel Cabinet
  • Clear VU Steel Cabinet
  • Optional Vertical Lettering
  • Optional Fire Handle
  • Made in USA

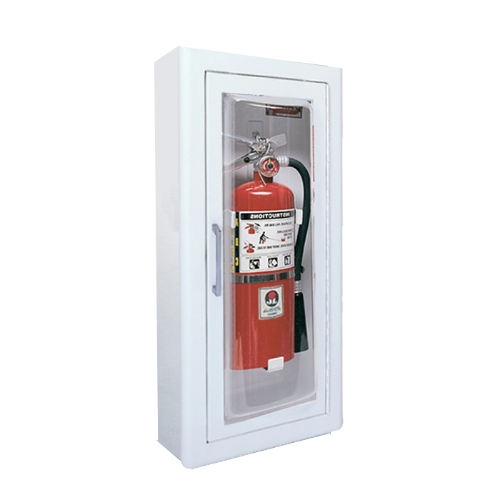

JL Clear VU 1517F25 Semi-Recess Mounted 10 lbs. Fire Extinguisher Cabinet with Acrylic Bubble

Item #: JLI-1517F25
Price: $163.10
163.10
USD
InStock
new
Optional:

Update price
Quantity:
  • JL Industries 1517F25
  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • Semi-Recessed - 3" Rolled trim
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • Made in America

JL Clear VU 1517F25 Semi-Recess Mounted 10 lbs. Fire Extinguisher Cabinet with Acrylic Bubble
Description

The JL Industries 1517F25 Clear VU Series is an attractive bubble cabinet made of steel with an acrylic bubble on front of cabinet. 180º extinguisher visibility. Semi-Recess Mounted with 3" Rolled Trim. The Bubble extends an additional 2-1/2" projection. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. The tub is constructed of cold rolled steel with white powder-coat finish standard.



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D		 Overall Outside Trim
W x H x D		 Wall Opening
W x H x D		 Extinguisher Size
10-1/2" x 24 " x 4" 13-7/8" x 27-3/8 " x 4" 11-1/2" x 25" x 1-1/8" 2½, 5, 10 lbs.


Available Options:

  • Stainless Steel, Aluminum, Bronze or Polished Brass
  • Additional Bubble Colors - Bronze or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

JL Industries a division of Activar Construction Products Group, Inc. Model C1517F25
