  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Surface Corner Mount - Space Saving Design
  • ADA Compliant
  • Vertical Duo Door - Clear Acrylic Glazing
  • SAF-T-LOK™ - Keyed Cylinder Lock
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • Made in America

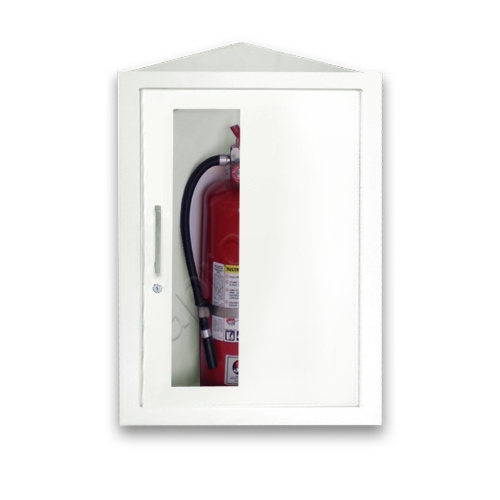

JL Corner VU 8813W10 Steel Surface Mounted 10 lbs. Fire Extinguisher Cabinet with Lock

Description

The Corner VU Series is made of cold rolled steel with a white powder-coat finish. Corner Mounted Cabinets are designed to be surface mounted in a corner for a space saving design and are ADA Compliant. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. Model 8813W10 comes with Vertical Duo Style Door Glazing and Lock. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Fire Extinguisher Cabinet Dimensions
Frame Outer Dimensions Extinguisher Size
15-3/4" x 24 " x 8-1/8 "2½, 5, 10 lbs.


Available Options:

  • Vertical Duo or Solid Door
  • Stainless Steel
  • Tempered Glass - 8813F17
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal
