  • Holds 1-1/2" x 1-1/2" Hose Rack Unit with 50 or 75' hose
  • Holds 2½ lb or 5 lb Fire Extinguishers
  • Full Glass Door Glazing - Clear Acrylic
  • One Year Warranty
  • Made in America

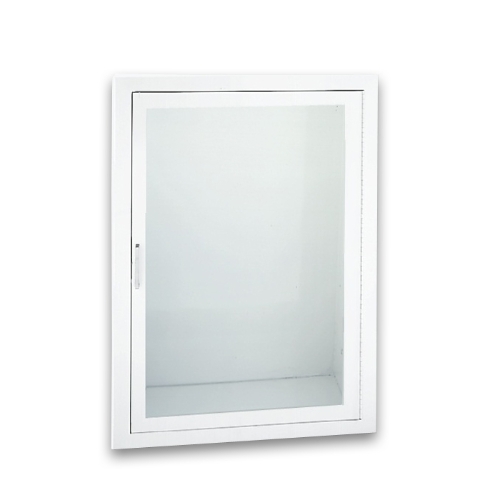

JL Crownline Steel C6015F10 Recessed Valve and Fire Hose Cabinet

Description

The Crownline Valve & Fire Hose Cabinets are designed to industry standards for fire department valves, fire hose rack units and extinguishers. Door and trim are cold rolled steel with white powder coat finish standard. 1-3/4" trim on face and door. These flush cabinet doors are mounted in a 5/8" door stop, are attached by a continuous hinge and are equipped with zinc plated handle and roller catch for all no-locking doors. Recessed 3/8" flat trim. Tub is CRS, white powder-coated finish.





Valve and Fire Hose Cabinet
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H x D
Recommended Hose Rack,
Valves & Extinguishers
24" x 30 " x 6" 27-3/8" x 33-3/8 "  25" x 31" 6-1/4"Hose Rack:
1-1/2" x 1-1/2" Hose Rack
Unit with 50 or 75' Hose
(3005, 3105, 3007, 3107)
& Cosmic 2-1/2 or
Galaxy 2-1/2 - 5 lb Extinguisher

Available Options:
  • Custom Sizes Available
  • Safety Lock
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
