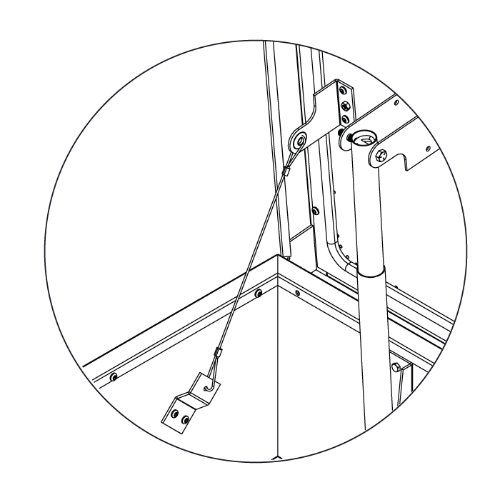

JL Industries DR-KIT-SC Stop Cable Replacement Kit
Follow
Instructions for Proper and Safe Replacement of Cable:
1. OPEN UNIT DOOR AND
LOCK HOLD OPEN ARM IN PLACE.
2 REPLACE OLD BRACKETS WITH NEW BRACKETS AND
HARDWARE.
3. INSERT CABLE CRIMP ONTO CABLE.
4. FEED CABLE THROUGH TOP
BRACKET AND PULL TILL THERE IS SLIGHT TENSION.
a.VISUALLY VERIFY THE DOOR IS NOT LOPSIDED ON EITHER END OF THE DOOR. ADJUST
CABLE TENSION AS NECCESARY.
b. DO
NOT PULL CABLE CRIMP THROUGH TOP BRACKET.
5. FEED END OF CABLE BACK THROUGH
CABLE CRIMP.
6. CRIMP
|
Parts for Dur-Red and JL Industries Roof Hatches |
|
DR-KIT-PI-9 |
Kit - 9"
Pressure Intensifier |
|
DR-KIT-PI-15 |
KIT - 15"
Pressure Intensifier |
|
DR-KIT-HOA |
Kit - Hold
Open Arm |
|
DR-KIT-1PL |
Kit - One
Point Latch |
|
DR-KIT-2PL-XXX |
Kit- XX Inch
Two Point Latch |
|
DR-KIT-GSKT-12 |
Kit - Gasket |
|
DR-KIT-SC |
Kit - Stop
Cable |
JL Industries a division of Activar Construction Products Group, Inc.
Model DR-KIT-SC
