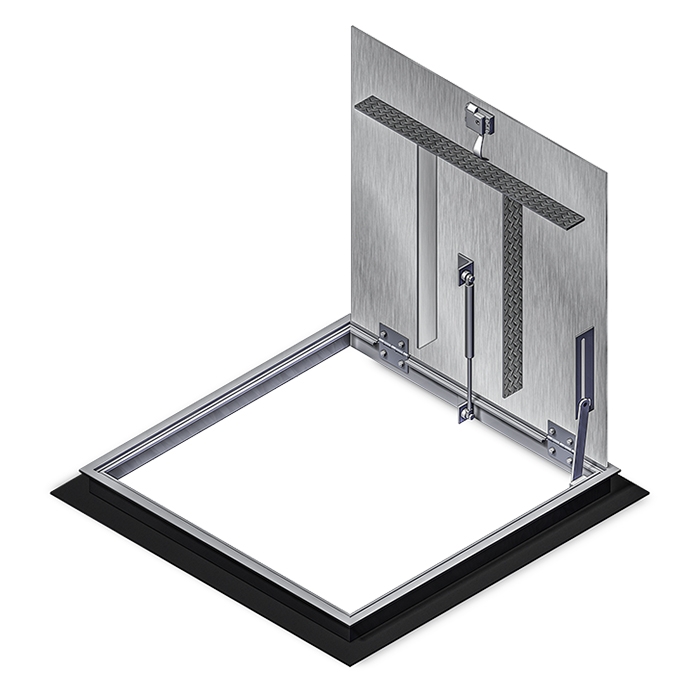

Model FLDA is a flush floor door that is designed to remain corrosion-free
with non-slip diamond plate surface. Frames material is 1/4" extruded
aluminum This door is made from reinforced 1/4" diamond plate for greater strength. Stainless steel hinges are bolted to the door and frame to minimize galvanic corrosion.
Hardware material is 18-8 Stainless steel bolts, nuts and washers. Latch is 304
Stainless steel slam latch with flush key operator on exterior and handle opener
on inside. Removable stainless 18-8 threaded plug and 5/16" steel square key
included. Hinge is 304 Stainless steel. Spring is 304 Stainless steel gas assist
opener. Hold Open Arm: Stainless steel automatically locks door open. The finish is mill with bituminous coating
on outer frame. The load is 300 lbs. per square foot.
Floor Door Models |
| Door Size |
Model Number |
Doors |
Weight |
| 24" x 24" |
FLDA-2424S |
Single |
60 lbs. |
| 24" x 36" |
FLDA-2436S |
Single |
76 lbs. |
| 30" x 30" |
FLDA-3030S |
Single |
81 lbs. |
| 36" x 36" |
FLDA-3636S |
Single |
100 lbs. |
| 30" x 48" |
FLDA-3048S |
Single |
115 lbs. |
| 36" x 48" |
FLDA-3648S |
Single |
118 lbs. |
| 42" x 42" |
FLDA-4242S |
Single |
120 lbs. |
| 48" x 48" |
FLDA-4848D |
Double |
154 lbs. |
| 48" x 60" |
FLDA-4860D |
Double |
173 lbs. |
| 48" x 72" |
FLDA-4872D |
Double |
208 lbs. |
| 60" x 60" |
FLDA-6060D |
Double |
215 lbs. |
