Quantity:
  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Most Elegant Door Style
  • #180 Clear Annodized Aluminum
  • Vertical Duo Door
  • "Fire Extinguisher" decal (optional above)
  • Concealed Hinges
  •  Handle and Roller Catch
  • One Year Warranty
  • ADA Compliant
  • Made in America

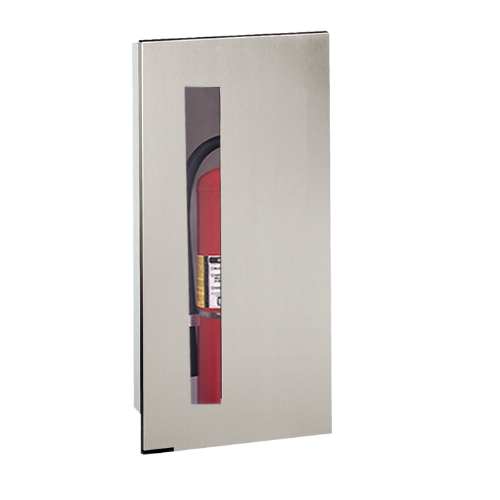

JL Embassy 5624V10 Trimless Recessed Aluminum 10 lbs. Fire Extinguisher Cabinet

Description

The JL Industries Embassy Series Cabinets Feature the Most Elegant Door Style in the JL Industries Product Line. The 5624V10 is a #180 Clear Annodized Aluminum Cabinet with a vertical duo glazed door. The 7/8" formed design cabinet doors are also available in 4 other materials. The door feature two concealed hinges with concealed handle and roller catch. The tub is constructed of cold rolled steel with a white powder-coat finish standard. ADA Compliant.

 Warranty

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
10-1/2" x 24 " x 5-3/4" 12-3/4" x 26-1/4" x 7/8" 11½" x 25" 6" 2½, 5, 10 lbs.



Available Options:
  • Solid Door
  • Stainless Steel, Satin Bronze, or Polished Bronze, Powder Coated Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

JL Industries a division of Activar Construction Products Group, Inc. Model C5624V10
