  • JL Industries 2115W10
  • Fully Recessed Fire Extinguisher Cabinet
  • Holds JL Industries Orbit FE10V Fire Extinguisher
  • Fits into a Standard 3-5/8" Stud Wall
  • Vertical Duo Door - Clear Acrylic Glazing
  • SAF-T-LOK™ Keyed Cylinder
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America

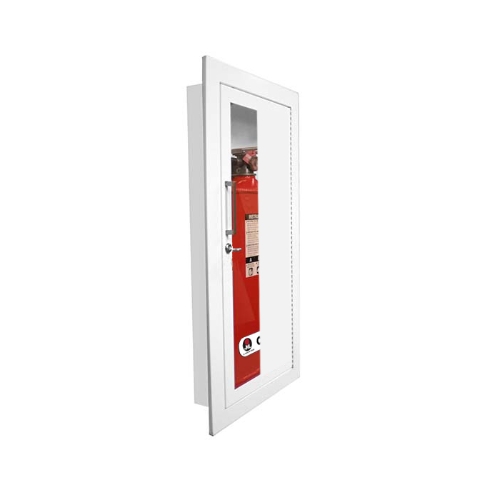

JL Orbit 2115W10 Low Profile Recessed 10 lbs. Fire Extinguisher Cabinet with Lock

Description

The JL Industries 2115W10  Orbit Series Feature a Low Profile Tub to Accommodate the Orbit FE10V Fire Extinguisher to Fit into a Standard 3-5/8" Stud Wall. Door and Trim are cold rolled steel with white powder-coated finish.  The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Recessed flat with 3/8" trim. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. The door is Vertical Duo Style door glazing.  Handle protrudes 5/8" from the surface. ADA Compliant.  The tub is constructed of cold rolled steel with white powder-coat finish standard. Extinguisher rests on a 1" high shelf.



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H x D
Extinguisher
12" x 27" x 3-1/4" 15-3/8" x 30-3/8" 13" x 28" x 3-1/8" Orbit FE10V



Available Options:
  • Full Glass or Solid Door
  • Stainless Steel, Aluminum, Bronze, Brass
  • FX2 Fire Rated
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal



JL Industries a division of Activar Construction Products Group, Inc. Model C2115W10
