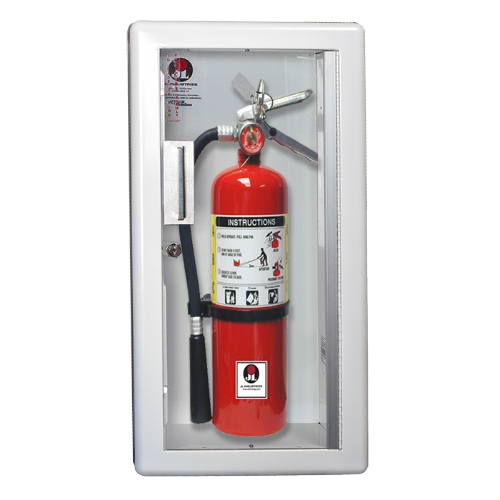

JL Panorama 1017C71 Semi-Recessed 10 lbs. Fire Extinguisher Cabinet with Lock

Item #: JLI-1017C71

~~Was: $219.30~~

Price: $219.30

Optional:

Update price

Quantity:

Estimate Shipping

Holds 2½ lb., 5 lb. or 10 lb. Fire Extinguishers Full Glass Door - Clear Acrylic Glazing Flush Acrylic Cabinet Door SAF-T-LOK™ - Keyed Cylinder Lock One Year Warranty ADA Compliant Made in America
JL Panorama 1017C71 Semi-Recessed 10 lbs. Fire Extinguisher Cabinet with Lock

Options for Textured Obscure Acrylic with Lettering
1017C71	Unlettered Smooth Clear Acrylic (standard above)
1017Q40	Black Background with White Vertical Lettering (optional above)
1017Q41	Red Background with White Vertical Lettering (optional above)
1017Q42	White Background with Black Vertical Lettering (optional above)
1017Q43	White Background with Red Vertical Lettering (optional above)
*See Submittal Sheet below for more details.*

Description

The Panorama cabinet features a frameless acrylic door of clear acrylic. Semi-Recessed Cabinet is ADA compliant. The door and trim are flush acrylic attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. 1-3/4" trim on cabinet has a white powder coat finish. The tub is constructed of cold rolled steel with white powder-coat finish. Fire Rated option also available. Made in USA.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Panorama Styles
Warranty	JL Catalog	Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 6"	13-7/8" x 27-3/8 " x 3-3/4"	11½" x 25" x 3-1/8"	2½, 5, 10 lbs.

Available Options:

White or Red Opaque Textured Acrylic Door
Flush Handle
Additional Tub Colors - Black or Red
Alarm Systems
Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Satin Aluminum

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1017C71
C1017Q40
C1017Q41
C1017Q42
C1017Q43
