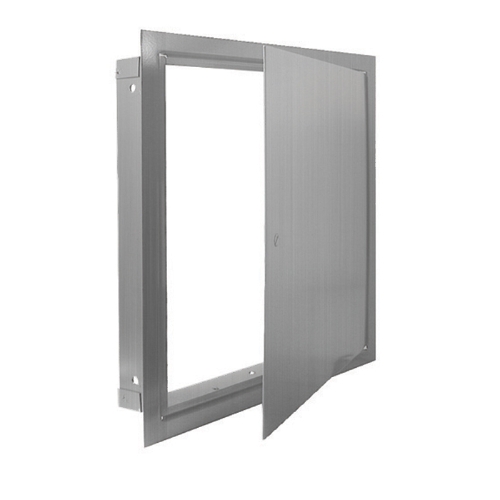

Karp Stainless Steel Universal Access Door DSC-214MS
This Access door is a distinctly superior door for new installations or for remodeling. The exposed flange adds rigidity to the unit and perfectly conceals the rough wall opening. Flexible anchor straps can be provided for installation within masonry openings.
Specifications
- Trim is ¾" wide, one piece construction.
- Concealed continuous piano hinge greater than 48".
- Flush screwdriver operated latch or optional cylinder lock **listed above**
- Masonry anchor straps can be included on all frames if specified.
- Stainless Steel No. 4 Satin Finish
STANDARD SIZES:
W x H |
Wall Opening |
Cam Latch |
|
W x H |
Wall Opening |
Cam Latch |
8 x 8 |
8⅜ x 8⅜ |
1 |
|
16 x 16 |
16⅜ x 16⅜ |
1 |
10
x10 |
10⅜ x 10⅜ |
1 |
|
18 x 18 |
18⅜ x 18⅜ |
1 |
12
x 12 |
12⅜ x 12⅜ |
1 |
|
24 x 24 |
24⅜ x 24⅜ |
1 |
In Stock and Ready to ship
|
