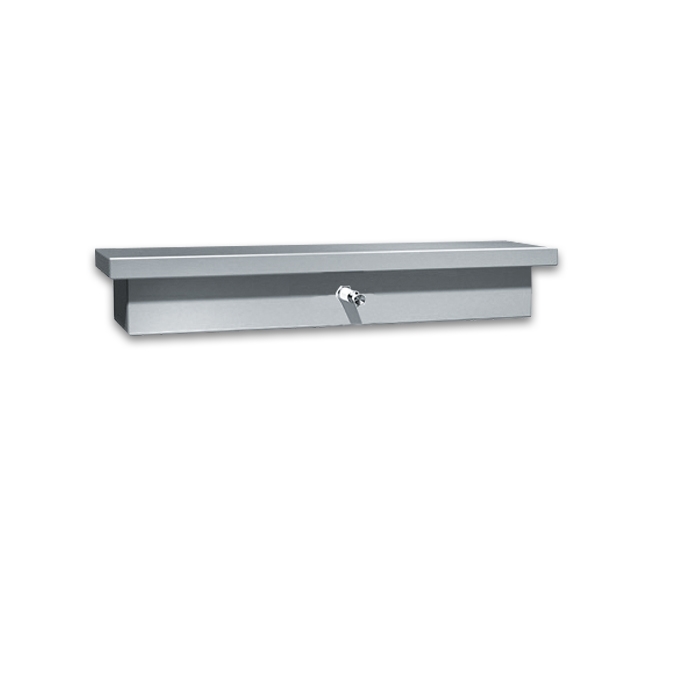

The ASI 0318 combination soap dispenser and shelf is satin 304 stainless
steel alloy 18-8 and is surface mounted. This dispenser holds and dispenses
83 oz (2455 ml) or 2.6 quarts (2.5liters) of liquid and lotion soaps, synthetic
detergents and antibacterial soaps containing PCMX and/or Triclosan. The ASI
0318 combination soap dispenser has
one valve. This soap
dispenser may be reloaded easily by opening hinged shelf/cover. All
exposed surfaces are protected during shipment with PVC film easily removable
after installation. The shelf/cover is held closed with a concealed latch.
Valve operation complies with 2010 ADA Accessibility Standards by requiring no
more than 5 lbs. (22.2 Newtons) of pressure to actuate and require no grasping
or twisting by operator.
Soap Requirements:
- Viscosity Range (mPa·s or cP): 100 – 2500
- pH Range: 5.5 ~ 6.5
A complete Dispensing Chart and other relevant technical documents are
available for this combination soap dispenser and shelf.
Dimensions: : 17-3/8" x 3-7/16" x 5-1/16" (440 x 87 x 130 mm)
Also available: ASI 0318-A soap dispenser and shelve with two
vavles
American Specialties, Inc. Model 10-0318
