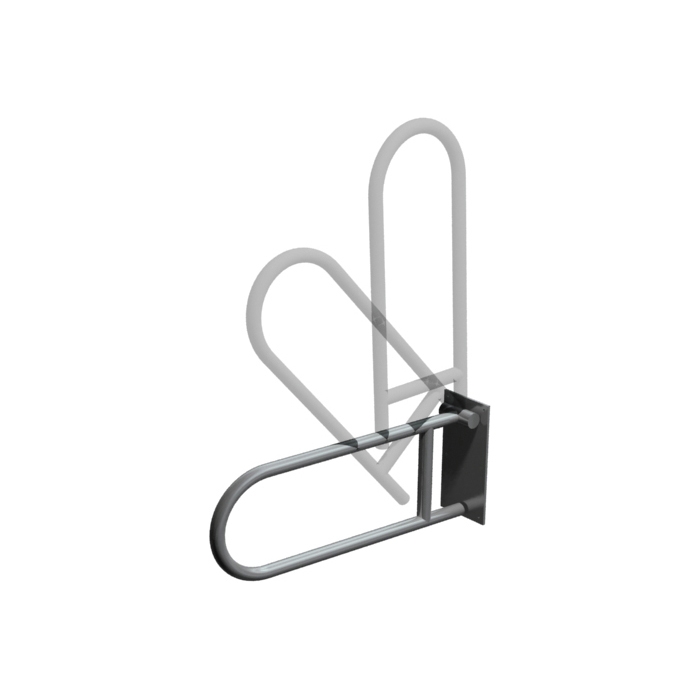

The ASI 3413 swing-up grab bar is manufactured with stainless steel type 304
alloy 18-8. The swing-up grab bar is made with 18 gauge x 1-1/4" diameter [Ø32]
tubing. The mounting bracket is made with a 9 gauge (5/32" thick [3.8]) plate
with seven (7) 1/4" diameter [Ø6.4] mounting holes. The hinge has adjustable
friction sleeve balance. All exposed edges and corners are radiused and burr
free.
Operable with only one hand this swing-up grab bar includes a stop
bumper to prevent raised bar from banging into wall.
ASI grab bars are
designed to meet and exceed 2010 ADA Accessibility Standards and ANSI A117.1 so
that fabricated product shall be of adequate strength to exceed specification
compliance by a Factor of Safety of 2. Swing-up grab bar can support loads in
excess of 500 lbs. (227 kg) when properly installed. Correct mounting is a
critical part of the system to meet this requirement.
American Specialties Inc. Model 10-3413
