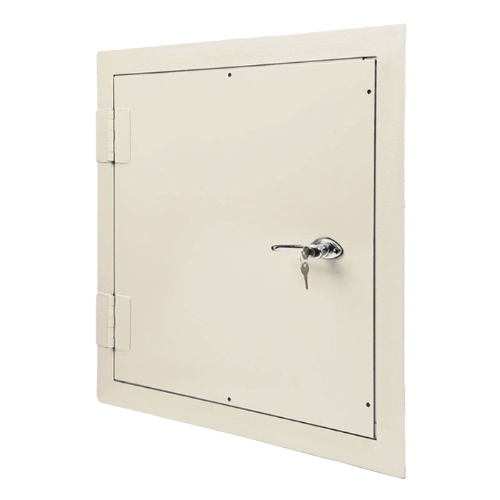

The Babcock-Davis BHS High Security Access Door provides secure access through
walls and is manufactured with detention grade materials. This panel is
engineered with heavy duty butt joint hinges on the face of the door to prevent
unwanted access. The BHS High Security access panel comes
standard with security screws cam latch. Detention Pre and
Mortise Lock Prep for a 1-1/8" cylinder lock are also available (
optional
above) and the 1204 1-1/8" Mortise Keyed Cylinder (
optional
above).
Door is constructed of 10 gauge steel. Frame is
3/16 inch Steel Angle - 2 inches by 2 inches. White powder coat finish. Heavy
duty butt joint hinges on face of the door. For use in either walls or ceiling.
Rough Door opening is + 3/4" Minimum.
Additional Options
- Type 304 Stainless Steel
- Continuous Concealed Hinge
Compare: Babcock-Davis BHS to Nystrom, Inc. HS Models
Legacy
Information:
Click here to view the detail sheet.
The C-HS enables architects and institutions to bring maximum security to areas where access is required for repair or maintenance purposes.
Lead time for access panels with any non-standard options is two weeks.
