  • Holds 2½ lb., 5 lb., or 6 lb. Fire Extinguishers
  • Vertical Duo Glass Door - Clear Acrylic Glazing
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • ADAC Recessed Pull Handle (optional above)
  • Polished Chrome Pull (optional above)
  • Clear Tempered Glass (optional above)
  • Laminated Safety Glass (optional above)
  • Wire Glass with Safety Film (optional above)
  • One Year Warranty
  • Made in America
Lead-Time
10 Working Days

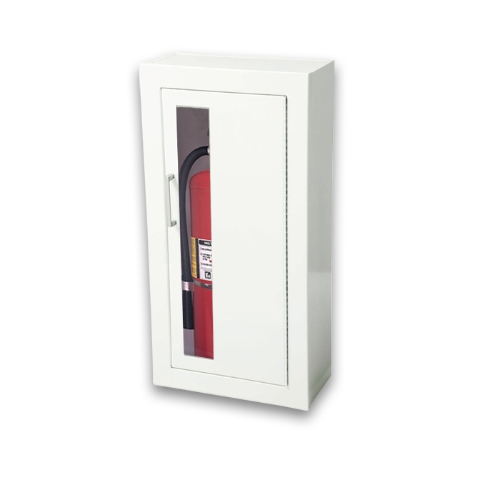

JL Ambassador 8113V10 Surface Mounted 5 lbs. Fire Extinguisher Cabinet
Description
The Ambassador Series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings. Door and trim are cold rolled steel with white powder-coated finish.  The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch.  All models have 1-3/4" trim on face and door. The door comes with a vertical duo of clear acrylic glass. Cabinet and handle protrude 7-1/4" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

The 8113V10 comes with clear acrylic glazing standard.  The 8113V17 comes with clear tempered glass glazing (optional above).  The 8113V18 comes with laminated safety glass glazing (optional above).   The 8113V13 comes with wire glass glazing with safety film (optional above).



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Extinguisher Size
12-3/16" x 21-3/16 " x 6"12-3/8" x 21-3/8 " x 7-1/4"2½, 5 lbs.


Available Options:

  • Full Glass or Solid Door
  • Stainless Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8113V10
C8113V17
C8113V18
C8113V13
C8113V10A
C8113V17A
C8113V18A
C8113V13A
