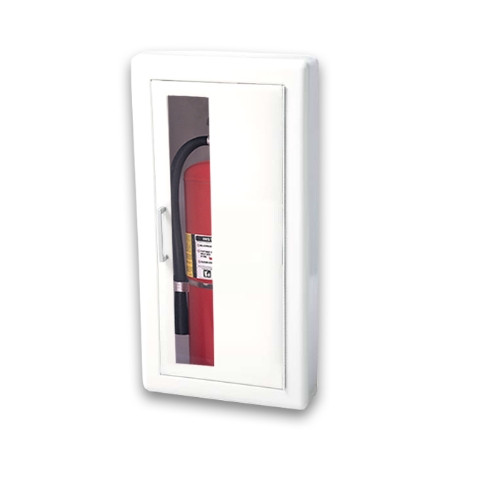

JL Ambassador 8117V10-FX2™ Fire Rated Semi-Recessed 5 lbs. Fire Extinguisher Cabinet

The Ambassador Steel FX2™ series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings.  Door and Trim are cold rolled steel with white powder-coated finish.  The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch.  All models have 1-3/4" trim on face and door. The door is a Vertical Duo Style  of clear acrylic glass.  Semi-Recessed Cabinet and handle protrude 3-1/8" from the surface.  The tub is constructed of cold rolled steel with white powder-coat finish standard.

Fire-Rating: The recessed and semi-recessed Fire-FX2™ cabinets are tested to maintain one and two hour fire-rated wall barriers, in accordance with ANSI/UL-1479 (ASTM E814 and ULC/CAN S115) for membrane and penetration firestrops. Installation instructions must be strictly adhered to in order to obtain the fire rating. The installation of any fire-rated cabinet which lacks a cabinet door or a condition in which the door is left ajar, will void the fire rating.

Submittal Sheet	Installation Instructions	FX-FX2 Flyer
Cross Reference	Specifications	Maintenance Instructions
Warranty	JL Catalog	Made In USA

 Available Options:

• Full Glass or Solid Door
• Stainless Steel
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C8117V10-FX2™
