  • Holds 1-1/2" or  2-1/2" Valve,
    100' Hose Rack Unit
    Plus FD Valve or Extinguisher
  • Full Tempered Glass Door Glazing (optional)
  • SAF-T-LOK™ - Keyed Cylinder Lock
  • ADA Compliant
  • One Year Warranty
  • Made in America
15 Working Days
Lead-Time

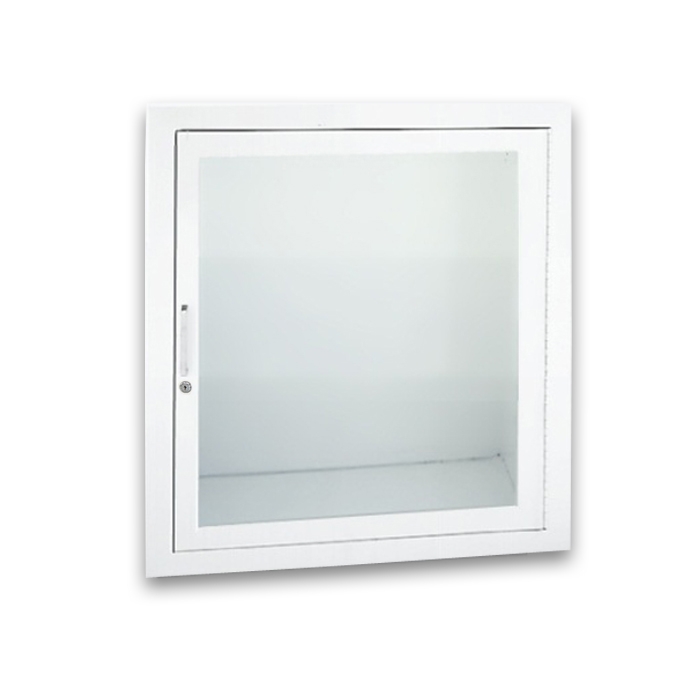

JL Crownline Steel C6515G10 Recessed Valve and Fire Hose Cabinet with Lock

Description

The Crownline Valve & Fire Hose Cabinets are designed to industry standards for fire department valves, fire hose rack units and extinguishers. Door and trim are cold rolled steel with white powder coat finish standard. 1-3/4" trim on face and door. These flush cabinet doors are mounted in a 5/8" door stop. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. Full Tempered Glass Glazing. Recessed 3/8" flat trim. Tub is CRS, white powder-coated finish.

The C6515G10 comes with clear acrylic glazing standard.  The C6515G17 comes with clear tempered glass glazing (optional above)





Valve and Fire Hose Cabinet
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H
Recommended Hose Rack,
Valves & Extinguishers
32-3/4" x 34-3/4 " x 8" 36-1/8" x 38-1/8"  33-3/4" x 35-3/4" 8-1/4"Hose Rack & FD Valve
or Extinguisher:
1-1/2" or 2-1/2" Valve
100' Hose Rack Unit
Plus FD Valve or Extinguisher
(Not Sentinel 20, 272)

Available Options:
  • Custom Sizes Available
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
