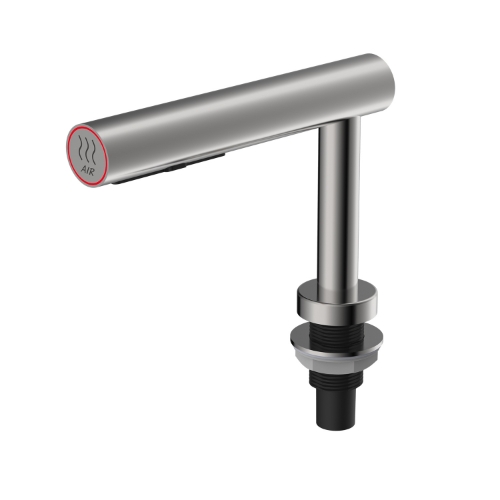

Palmer Fixture EcoTap HD0935 brushed stainless deck mount hand dryer comes as 110/120
volt HD0935-09 and 220/240 volt HD0936-09 (
optional above). This
hand dryer is one of three
products in the EcoTap Trio which includes the SD1500-09 foam soap dispenser and
the AF0304-09 faucet. Users can dry their hands right after they wash them
while excess water goes right into the sink. Fast 10 to 15 second dry time with a
stylish satin stainless finish.
| Model |
Voltage |
Amps |
| HD0935-09 |
110/120 Voltage |
7.6A - 8.4A |
| HD0936-09 (special order) |
220/240 Voltage |
3.8A - 4.2A |
- Weight: 12.30 lbs.
- Dimensions: 8.66 × 1.97 × 6.69 in
- Motor
Type: Brush Type, Dual Ball Bearings
- Thermal Protection:
- Thermostat shuts off at 203°F (95°C)
- Heater shuts off at 185°F (85°C)
- Operating Airflow: 16,535 to 19,882 LFM,
Adjustable
- Air Output Temperature:
- 122°F (57°C), Adjustable
- Ambient Temp 77°F
(25°C)
- Sound Level: Min 68.5dB to 70.5dB Max @1m
- Isolation: Class 1
- Drip Proof:
IP35
- RPM: 22,000 to 29,000, Adjustable
Palmer Fixture Company Models:
HD0935-09
HD0936-09
