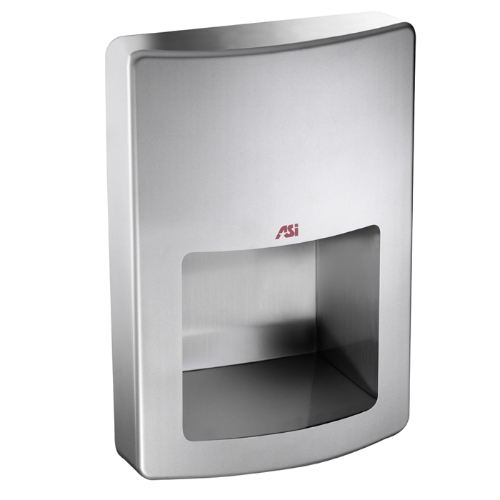

The Recessed High Speed Hand Dryer Model 20199 by ASI is a perfect example of what a recessed high-speed hand dryer should be. This high-performance hand dryer features an extremely fast drying time of less than 15 seconds. The 18gauge stainless steel cover is uniquely designed to complement the Roval™ collection with this boat face and gently rounded edges.
This hand dryer operates automatically with the use of infrared sensors that are activated once a user places hands in the sensing zone the fixed directional air valves are heavy-duty, rustproof and tamper resistant. This revolutionary model also features self adjusting timeout in fail safes that automatically self calibrate to provide uniform sensitivity of the entire lifespan of the product.
Electrical Specifications:
Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings
Voltage:
• 20199-1: 120 VAC, 50/60 Hz. 1.0 kW
• 20199-2: 240 VAC, 50/60 Hz. O.0 kW
Air Output: 60 CFM max - Temp: 131º F ± 5@ 77º F (55o C ±2.8 @ 25o C) ambient room temp
Output Air Speed: 201 mph (295 ft/s) [90 m/s {324 km/h}]
Heater: 500 Watts
Current: 8.3 Amps @ 120 VAC;
4.2 Amps @ 240 VAC
Dry Time: Under 15 seconds
Sound Pressure
(Decibel Level)
Max: 69.1 dB-A @ 2M
Wall Opening:
(Conforms to ADA) 10 1/2” x 15 1/8” x 3 5/32” (267 x 384 x 80 mm)
