  • Surface Mounted
  • Holds 2½, 5, 6 or 10 lb. Fire Extinguishers
  • 16 ga. Galvanneal Construction
  • Flush Stainless Steel Paddle Latch
  • Cylinder Lock Keyed Alike
  • Stainless Steel Piano Hinge
  • Red Polyester Powder Coat
  • Neoprene Gasket
  • UV Resilient Decal

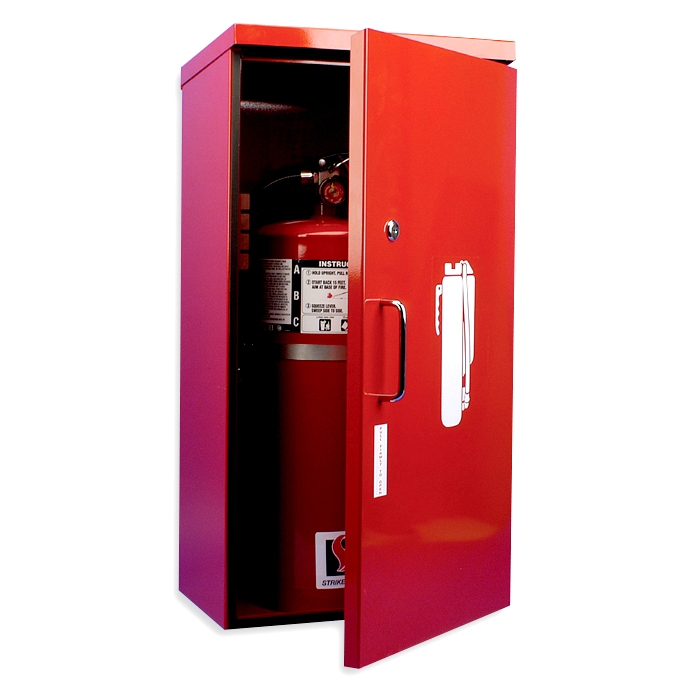

Heavy Duty Outdoor Fire Extinguisher Cabinet - Model A-HDOC-10
Description

The Heavy Duty Outdoor Fire Extinguisher Cabinet is only available as a surface mounted cabinet.

Door Panel/Front: 16 ga. galvanized cold-rolled steel.

Tub: 16 ga. galvanized cold-rolled steel. All welded construction; weather proof gasket around door jam; sloped roof.

Hardware: Full length stainless steel piano hinge; safety break lock.

Finish: Baked red acrylic over rust-inhibiting phosphate treated steel.

Door Style: Full metal complete with Extinguisher Logo in white.


Download Acrobat Reader
Heavy Duty Outdoor Cabinets
Model
Number
Return Trim Tub Size Overall Outside
Trim Dim.
Rough Opening Extinguisher
Size
In Lbs.
W H D W H W H D
A-HDOC-10 - 11½" 24" 7¾" 12" 25" - - - 5 & 10
A-HDOC-20 - 14" 28" 9" 14" 28" - - - 20
A-HDOC-30 - 14" 33" 9" 14" 33" - - - 30
