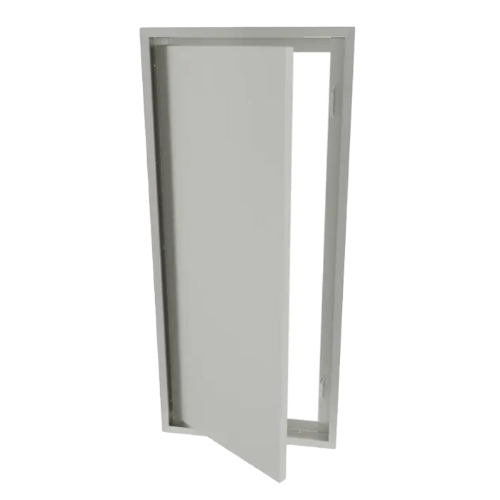

The Babcock-Davis BPART Perimeter Access Door delivers a clean, elegant,
louver-free solution while providing make up air to appliances that are
discreetly concealed behind the door. The PAR door provides easy access for
service and repair of equipment. Access Door features 1-1/2 inch
thick Linacoustic insulation for superior acoustical and thermal performance.
Air return 1-inch gap around the perimeter of the door. Removable Door. Custom sizes are available,
from 28 inches by 42 inches to 36 inches by 72 inches. Door is
Constructed of 20 gauge Steel, Frame is 16 gauge Steel. 1 inch
Exposed Flange. Concealed Pin Hinge. White Powder Coat Finish. Insulation is 1½
inch Fiberglass.
Additional Options
- Gasketing Options
- Drywall Flange (BPARW)
- Mortise Prep Lock
- Key Opterated Cam Latch
Compare: Babcock-Davis BPART to Nystrom, Inc. PART Model
