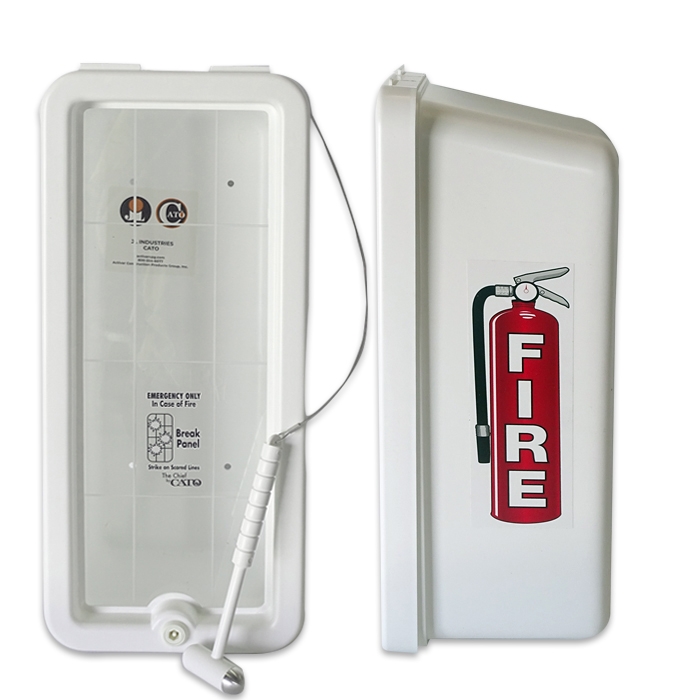

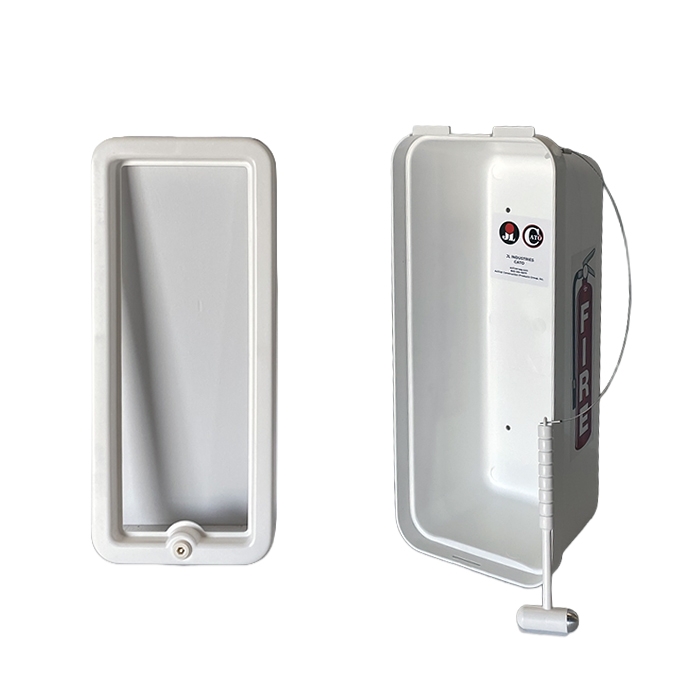

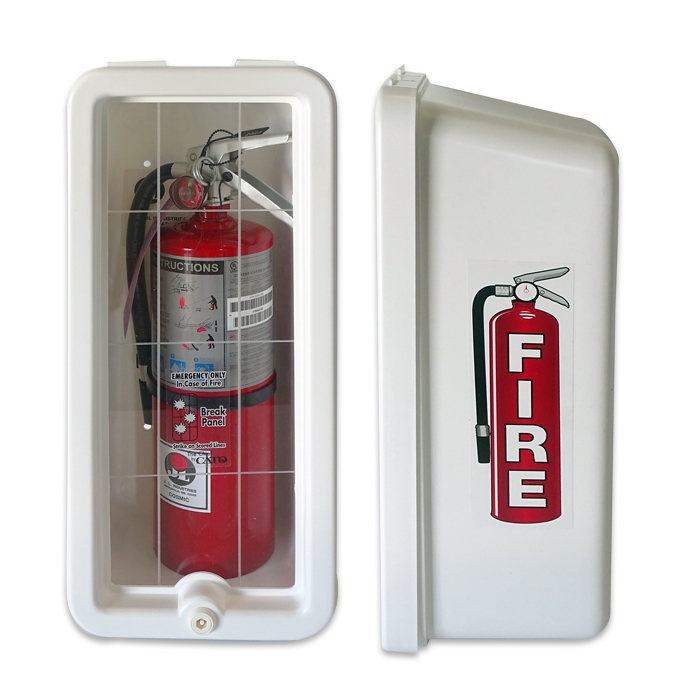

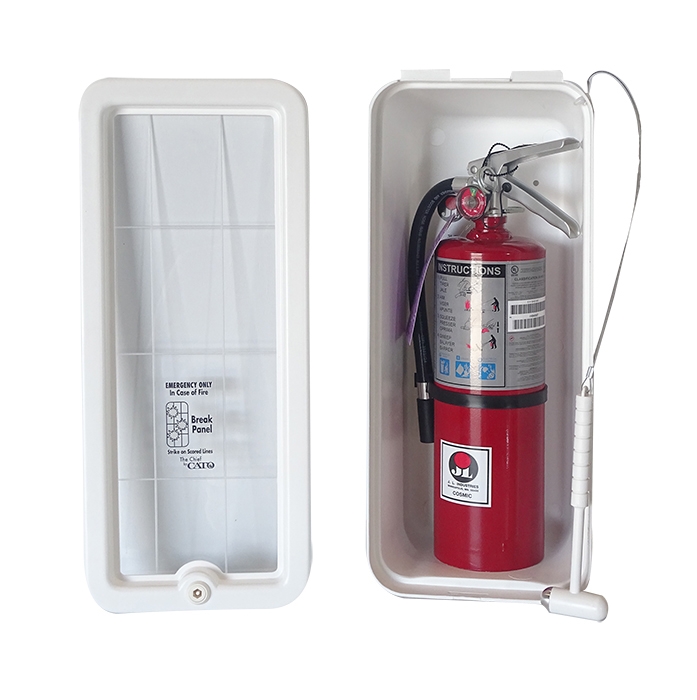

The CATO 10501-H Chief plastic 5 lbs. fire extinguisher cabinet in red is
design to hold a 5 lbs. fire extinguisher. Because there are no metal
parts, this cabinet can not rust. CATO offers an extinguisher tray (optional
above) to separate the extinguisher from moister at the bottom of the
cabinet.
The CATO 10501 fire extinguisher cabinet, also know as the CATO PC
105-5 WWC, is manufactured by Cato, Inc. with body and frame injection molded
white virgin high-impact crystal polystyrene of .110 wall thickness with
ultra-violet inhibitors, virgin acrylic Plaskolite® panel of .80 thickness, ABS
lock and key, polypropylene plastic injected molded hammer with flexible
torsion, ribbed grip surface and clear nylon-jacketed stainless steel mechanical
cable (optional above). Stainless steel breaker bar (optional
above).
Available Sizes
Lock & Key
The all-plastic ABS cam lock and key eliminates
corrosion making the CATO Chief the first cabinet with a non-seize lock. This
lock will never rust.
Hammer
White injection molded plastic hammer with flexible torsion and ribbed grip with a stainless steel clear nylon jacketed mechanical cable used to break
the clear acrylic panel in case of fire (optional above).
Breaker Bar
Stainless Steel Breaker Bar with a stainless steel clear nylon jacketed mechanical cable used to break
the clear acrylic panel in case of fire (optional above) .
Safety
With no sharp corners or breakable glass, the Chief Plastic Fire Extinguisher Cabinet is one of the safest cabinets available.
Plastic Fire Extinguisher Cabinets Dimensions
|
Model # |
Interior Tub |
Overall Outside Trim |
With Cover Outside |
|
|
W |
H |
D |
W |
H |
D |
W |
H |
D |
|
Plastic Fire Extinguisher Cabinets |
|
CA-10501 |
6" |
16 3/4" |
5 3/8" |
8" |
19" |
6 3/8" |
8 1/4" |
19 1/4" |
6 3/4" |
|
CA-11001 |
6 3/4" |
20 1/2" |
6" |
9" |
23" |
7" |
9 1/4" |
23 1/4" |
7 1/4" |
|
CA-12001 |
9" |
26" |
8" |
11" |
28" |
9" |
11 1/2" |
28 1/2" |
9 1/2" |
| Alternate Part Numbers |
| PC-105 Red |
CATO Chief |
| PC-105-5 (WWC) |
10501 |
| PC-105-10 (WWC) |
11001 |
| PC-105-20 (WWC) |
12001 |
Compare to:
- Strike First PC-105-5
- Brooks FT5PW FireTech™
Cato 10501-H
