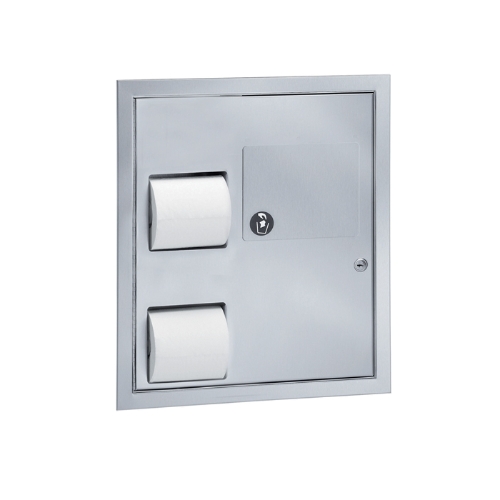

Model 5941 - Partition Mounted Flush One Side
Overall Dimensions: 17⅛"W x 20"H x 4½" D.
Product Materials:
Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges.
Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with ¼" return.
Door: 18 gauge stainless steel with full-length piano hinge and tumbler lock keyed like other Bradley units.
Push Flap Door: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Self-closing, with heavy-duty stainless steel piano hinge.
Waste Receptacle: leak proof molded plastic. 0.88 gal. capacity.
Spindles: polyethylene, non-removable by user.
Capacity:
Four standard core tissue rolls through 5¼" in diameter.
Operation:
Hinged access door permits servicing of components from one side.
Installation:
Verify all rough-in dimensions prior to installation. Mounts in partition of toilet compartment for physically handicapped. Requires partition opening 15⅜"W x 18¼"H. (Location of hole and dimensions should be noted in partition specifications.) Flanges adjustable for partitions from ⅜" to 4" thick. Remove one flange and install cabinet in partition opening flush against partition. Position flanges on both sides of cabinet and secure with mounting screws (included) at holes provided.
