  • Concealed Frame Access Panel
  • Integral Wallboard Bead
  • Paintable Door and Frame Lip
  • Provides Seamless Built In Look
  • Provide Wall or Ceiling Access to Plumbing, HVAC and Communications
  • 16 Gauge Steel with 1-1/4" Drywall Bead
  • Access Door Mounted with Concealed Continuous Hinge
  • White Powder Coat Paint
  • Flush screwdriver-operated steel cam (C)
  • Keyed Cylinder Lock (L) (optional above)

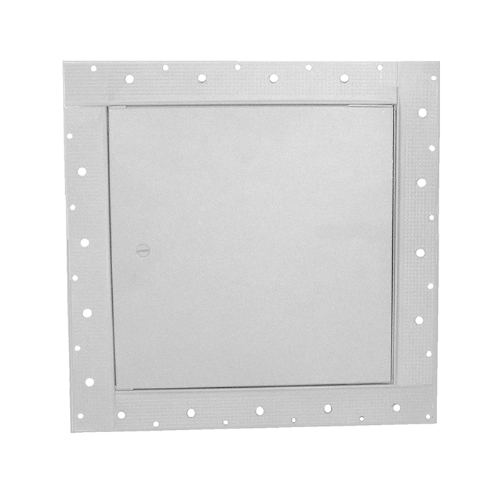

JL Industries TMW Flush Access Panel with Wallboard Bead For Walls and Ceilings



Description

Model TMW Flush Access Panel with Wallboard Bead is 16 Gauge Cold Rolled Steel Access Door that Affords Fast and Convenient Access for Inspection or Service to Vital Components of Plumbing, Heating, Air Conditioning and/or Electrical Systems. The Wallboard Bead Model for walls or ceilings eliminates visual distractions by providing a smooth paintable surface with concealed hinge. The wallboard bead provides a tapered way to conceal the rough opening when taped and finished - for an attractive appearance.

 JL Catalog



Model TMW Flush Access Panels

Model Size

W x H
Outside
Frame Dimensions
1" Trim Flange

W x H

Opening Dimensions

W x H

Latch(es)
8" x 8"10" x 10"8½" x 8½"1
12" x 12"14" x 14"12½" x 12½"1
14" x 14"16" x 16"14½" x 14½"1
16" x 16"18" x 18"16½" x 16½"1
18" x 18"20" x 20"18½" x 18½"3
22" x 22"24" x 24"22½" x 22½"4
22" x 30"24" x 32"22½" x 30½"4
24" x 24"26" x 26"24½" x 24½"4


Available Options:

  • Plexiglass View Window
  • Gasketing
  • Additional Lock Options
  • Additional Cabinet Colors - Bronze, Red, Black, Sand, AMS Beige, SC Beige, Grey or Silver

JL Industries a division of Activar Construction Products Group, Inc. Model TMW
